Inter-process communication - Part 1

31 Mar 2021 - Programming

In one of my recent projects, it uses lots of IPC (Inter-process communication) to exchange messages between different processes. This reminds me of a good topic to talk through. Due to its complexity and my own experience limitation, in this article I will just summarize different ways of IPC methods.

1. Why do we need IPC?

Each process has its own address space. One process cannot directly access another one’s space. Therefore, if two processes want to exchange data, they must do it through kernel: They will need a buffer located in the kernel, one process writes its data into that buffer and the other process reads out the data from the buffer. This mechanism provided by a kernel is called IPC (Inter-Process Communication).

2. Different ways for IPC

There are several ways for IPC, including pipe, FIFO, message queue, signal, and socket etc.

2.1. Pipe

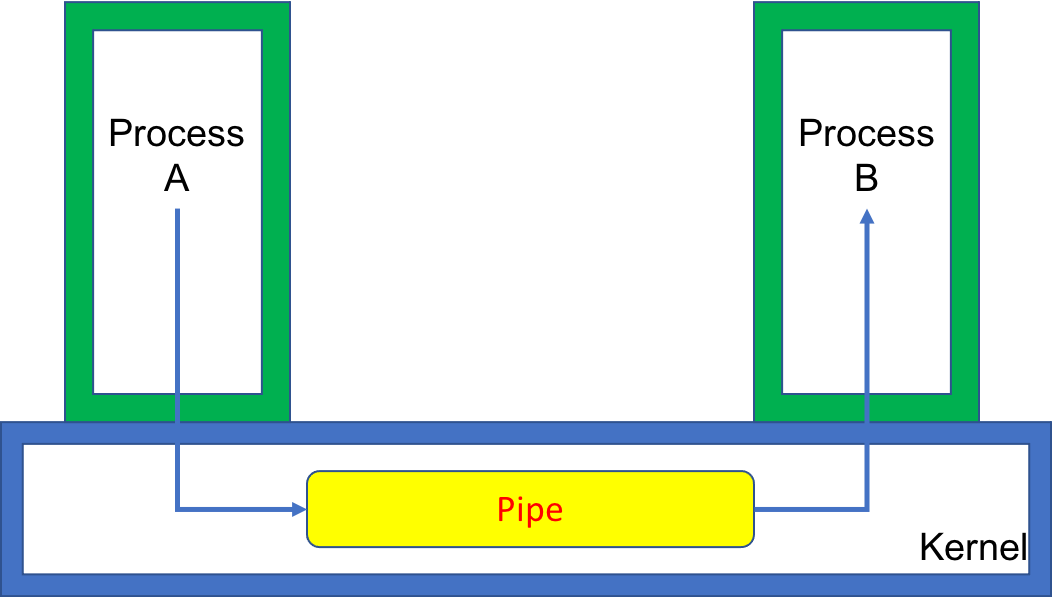

Pipe is a buffer that locates in the kernel. It follows the first-in-first-out rule to read and write data: One writes data into the pipe at one end, and the other reads data from the pipe at the other end. If the buffer is full, the process which writes data will be put into sleep until the other one reads data. Similarly, if the buffer is empty, the process which reads data will be put into sleep until there are new data to read.

Pipe is half duplex. That means, data flows in only one direction. If you need two-way communication, then you will have to create two separate pipes. Another limitation of pipe is that it only works between processes that have a common ancestor, e.g., two processes that have parent-child relationship or sibling relationship.

Reference:

• Advanced Programming in the UNIX Environment: 15.2. Pipes

2.2. FIFO

Because pipe can be applied only between related processes, FIFO (aka, named pipe) is used to get around this limitation. A FIFO is associated with a pathname, and it exists in file systems. Therefore, even two unrelated processes can exchange data by accessing a FIFO using its pathname. Just like its name indicated, FIFO also follows first-in-first-out rule to read and write data.

Once a FIFO is created, it can be opened like a regular file with O_RDONLY or O_WRONLY flag. Moreover, depending on whether the flag O_NONBLOCK is specified during opening, a FIFO can be either synchronized or asynchronized. In the normal case (i.e., where O_NONBLOCK is not specified), an open for read-only blocks until some other process opens the FIFO for writing. Similarly, an open for write-only blocks until some other process opens the FIFO for reading. If the O_NONBLOCK flag is specified, an open for read-only would return immediately. For an open for write-only, it returns -1 and set errno to ENXIO if no process has the FIFO open for reading (ENXIO in this case stands for no process has the FIFO open for reading).

Reference:

• Advanced Programming in the UNIX Environment: 15.5. FIFOs

(To be continued…)
